SONY KDL22EX550 KDL26EX550 KDL32EX650 - SERVICE MODE and ADJUSMENTS
Applicable to: Sony KDL22EX550 KDL26EX550 KDL26 EX 553 KDL26EX555 KDL32EX 653 KDL32EX655 (AEP/UK/IT)
Turn on the main power switch to place this set in standby mode.
Press the buttons on the remote commander as follows, and entering service mode.
DISPLAY > CHANNEL-5 > VOLUME (+) > POWERPress the buttons on the remote commander as follows, and entering service mode.
SERVICE MODE DISPLAY
Note:First of all, when you enter Service Mode, you can see �Digital� service mode.
Whenever you press �OPTIONS� or �JUMP� on remote, each service mode is changed. �Digital� > �Chassis� > �VPC�
Whenever you press �OPTIONS� or �JUMP� on remote, each service mode is changed. �Digital� > �Chassis� > �VPC�
REMOTE COMMANDER KEY FUNCTIONS
Service mode on: Test + TV / Display 5 Vol Up Power
Service mode off: Other / Power off + on
Item up / down: 1 / 4
Category up / down: 2 / 5
Data up / down: 3 / 6
Test reset: 8 + Mute + 0
Read data: 9 + 0
Execute: 10 or 0
Write data: Mute + 0
Change module: Jump / Option
Data up / down: 3 / 6
Test reset: 8 + Mute + 0
Read data: 9 + 0
Execute: 10 or 0
Write data: Mute + 0
Change module: Jump / Option
After entering service mode, then turn off the power switch.
CHANGING THE DATA VALUES
�Digital� service mode doesn't have to save. (Except �002 MODEL� and �005 CHPRSET� category)
1) Change Data of �Digital� service mode. (Except �003 DIG_SRV_MODE� category)
a. Press �2 / 5� on remote to select (up / down) category.
b. Press �1 / 4� on remote to select (up / down) Item.
c. Press �3 / 6� on remote change (up / down) data.
1) Change Data of �Digital� service mode. (Except �003 DIG_SRV_MODE� category)
a. Press �2 / 5� on remote to select (up / down) category.
b. Press �1 / 4� on remote to select (up / down) Item.
c. Press �3 / 6� on remote change (up / down) data.
Change Data of �Digital� service mode. ( �003 DIG_SRV_MODE� category)
�003 DIG_SRV_MODE� is one category of �Digital� service mode. Note because this operation is special.
a. Press �2 / 5� on remote to select �003 DIG_SRV_MODE�.
b. Press �1 / 4� on remote to select (up / down) Item.
c. Press �0 / 10� on remote to select item.
d. Press number key �1�~�9� directly. �*� stamp move.
e. Press �12 / enter / select� to decide and advance next step. Press �return�, when returning on the previous page.
�003 DIG_SRV_MODE� is one category of �Digital� service mode. Note because this operation is special.
a. Press �2 / 5� on remote to select �003 DIG_SRV_MODE�.
b. Press �1 / 4� on remote to select (up / down) Item.
c. Press �0 / 10� on remote to select item.
d. Press number key �1�~�9� directly. �*� stamp move.
e. Press �12 / enter / select� to decide and advance next step. Press �return�, when returning on the previous page.
TO SAVE CHANGING DATA
1 Write data for �Chassis� or �VPC� service mode
a. Press �Mute� on remote. It shows green �SERVICE� changes to green �WRITE�.
b. Press �0� or �enter� on remote. Green �WRITE� changes to red �WRITE�. It indicates writing is processing.
c. After a while, red �WRITE� changes to green �SERVICE�. Writing process is done at this point.
2 TV reboot is necessary for applying data change.
1 Write data for �Chassis� or �VPC� service mode
a. Press �Mute� on remote. It shows green �SERVICE� changes to green �WRITE�.
b. Press �0� or �enter� on remote. Green �WRITE� changes to red �WRITE�. It indicates writing is processing.
c. After a while, red �WRITE� changes to green �SERVICE�. Writing process is done at this point.
2 TV reboot is necessary for applying data change.
WHITE BALANCE ADJUSTMENT
Note: Execute this adjustment if necessary.
Change Data of �VPC� service mode. (�006 WB� category)
a. Press �1� or �4� on remote to select WB adjustment menu.
b. Change data by pressing �3� or �6�. Each range of these items is 0~255.
c. Press �mute� +�0� on remote to save the data. �SERVICE� comment is changed to �WRITE�, indicating writing process.
d. After a while, �WRITE� comment returns to �SERVICE�, which means writing process is done.
Note: Execute this adjustment if necessary.
Change Data of �VPC� service mode. (�006 WB� category)
a. Press �1� or �4� on remote to select WB adjustment menu.
b. Change data by pressing �3� or �6�. Each range of these items is 0~255.
c. Press �mute� +�0� on remote to save the data. �SERVICE� comment is changed to �WRITE�, indicating writing process.
d. After a while, �WRITE� comment returns to �SERVICE�, which means writing process is done.
VCOM ADJUSTMENT
Note: Execute this adjustment if necessary.
1 Change Data of �VPC� service mode.
a. Select �002 VCOM categories by pressing �2 / 5� on remote.
b. Select �000 ENABLE items by pressing �1 / 4� on remote.
c. Change ENABLE from �0� to �1� to enable VCOM adjustment.
Note: Execute this adjustment if necessary.
1 Change Data of �VPC� service mode.
a. Select �002 VCOM categories by pressing �2 / 5� on remote.
b. Select �000 ENABLE items by pressing �1 / 4� on remote.
c. Change ENABLE from �0� to �1� to enable VCOM adjustment.
d. Select �002 VCOM categories by pressing �2 / 5� on remote.
e. Select �001 ADJUSTS� item by pressing �1 / 4� on remote.
f. Change data by pressing �3 / 6� on remote controller.
g. Finish the adjustment when the picture seems OK.
e. Select �001 ADJUSTS� item by pressing �1 / 4� on remote.
f. Change data by pressing �3 / 6� on remote controller.
g. Finish the adjustment when the picture seems OK.
Attention Every time the data changed by pressing �3 / 6� Key, the VCOM pattern will display for 5s and in the mean time OSD will disappear, After the 5s period, VCOM pattern will disappear and OSD will display again.
The 5s time can be adjust by data change.
If pressing the �3/6� key again during the 5s period, the VCOM pattern display time will be extended to another 5s.
The 5s time can be adjust by data change.
If pressing the �3/6� key again during the 5s period, the VCOM pattern display time will be extended to another 5s.
TO SET THE SHIPPING CONDITIONS
Move to �Digital� service mode.
Press �8� on remote. It shows green �SERVICE� changes to green �RST-�.
Press �mute� on remote.
Added green �EXE� after green �RST-� .
Press �0� on remote. Green �EXE-RST� changes to red �EXE-RST�. It indicates writing is processing. After a while, red �EXE-RST� changes to green �SERVICE�. And all LED lights.
Writing process is done at this point.
Move to �Digital� service mode.
Press �8� on remote. It shows green �SERVICE� changes to green �RST-�.
Press �mute� on remote.
Added green �EXE� after green �RST-� .
Press �0� on remote. Green �EXE-RST� changes to red �EXE-RST�. It indicates writing is processing. After a while, red �EXE-RST� changes to green �SERVICE�. And all LED lights.
Writing process is done at this point.
You can set to shipping condition w/o entering Service Mode.
=> �Cursor Up� on remote + �Power Key� on Front panel.
=> �Cursor Up� on remote + �Power Key� on Front panel.

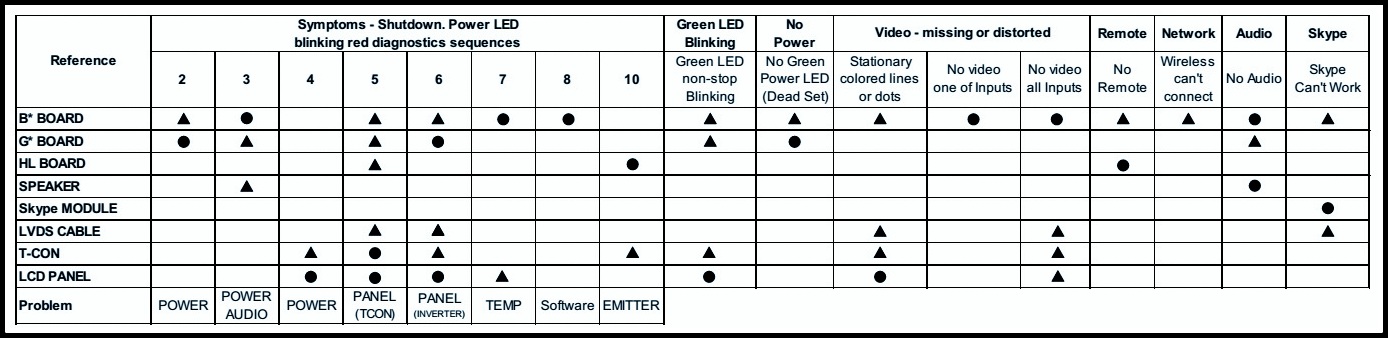

TROUBLESHOOTING CHART
B board and Power board are different in name every inch. Therefore this section displays difference point in "*".
CLICK ON THE PICTURES TO MAGNIFY
